Professional Spiral Cooling Tower Manufacturer from China
Stop wasting floor space with long straight conveyors
upgrade to a spiral cooling tower for efficient cooling, smooth product flow, and a compact layout.
Long service life, not easy to break
Custom design based on specific working conditions
Stable long-term operation, minimizing downtime

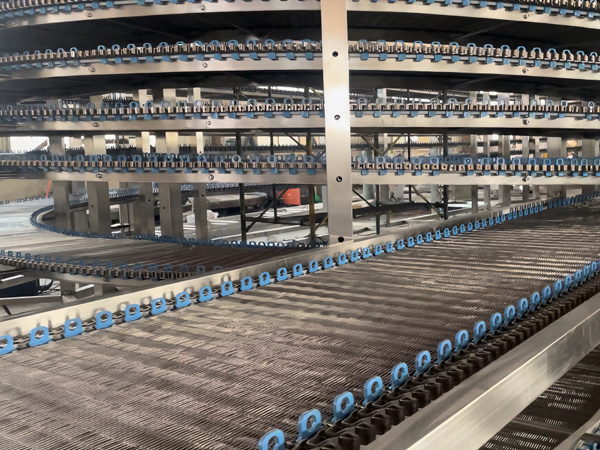

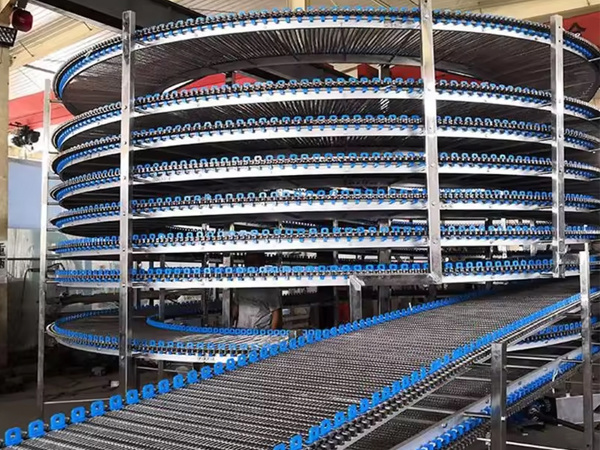

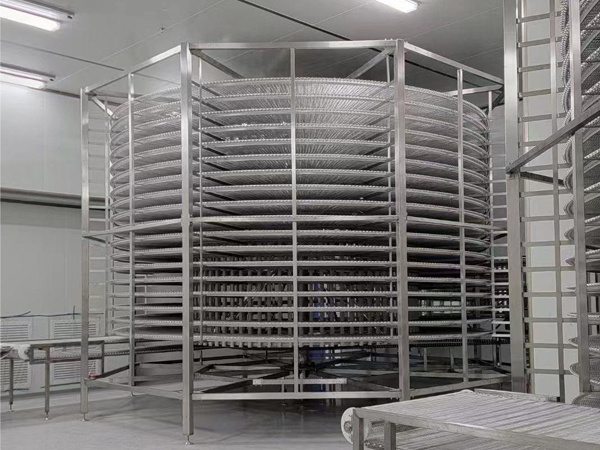

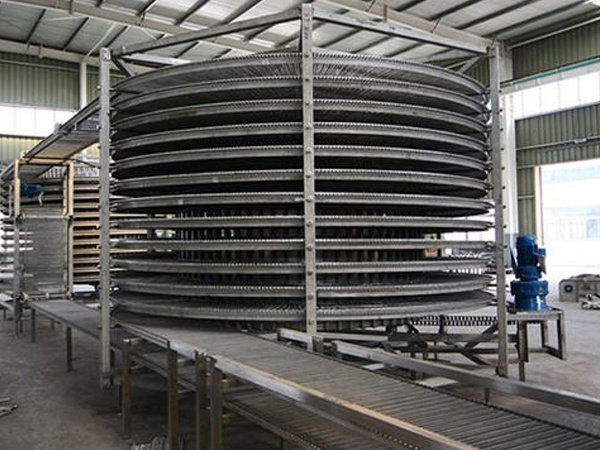

Spiral Tower Conveyor
The spiral cooling conveyor tower enables continuous conveying and cooling over extended distances within limited plant floor space. It effectively extends product cooling time, minimizes footprint, and facilitates smoother integration across the entire production line.
Leveraging a three-dimensional spiral structure, the system ensures a more stable and uniform cooling effect as products travel through the conveyor. It is widely applicable in food processing, baking, and fried food industries, as well as various other industrial conveying environments.
The Advantages of Our Spiral Cooling Conveyors
Our spiral cooling conveyor system is specifically engineered for stable, continuous 24-hour operation, designed to empower our clients to maintain highly efficient and uninterrupted production processes. Thanks to its compact vertical design, the system maximizes both cooling capacity and conveying efficiency within limited plant floor space.

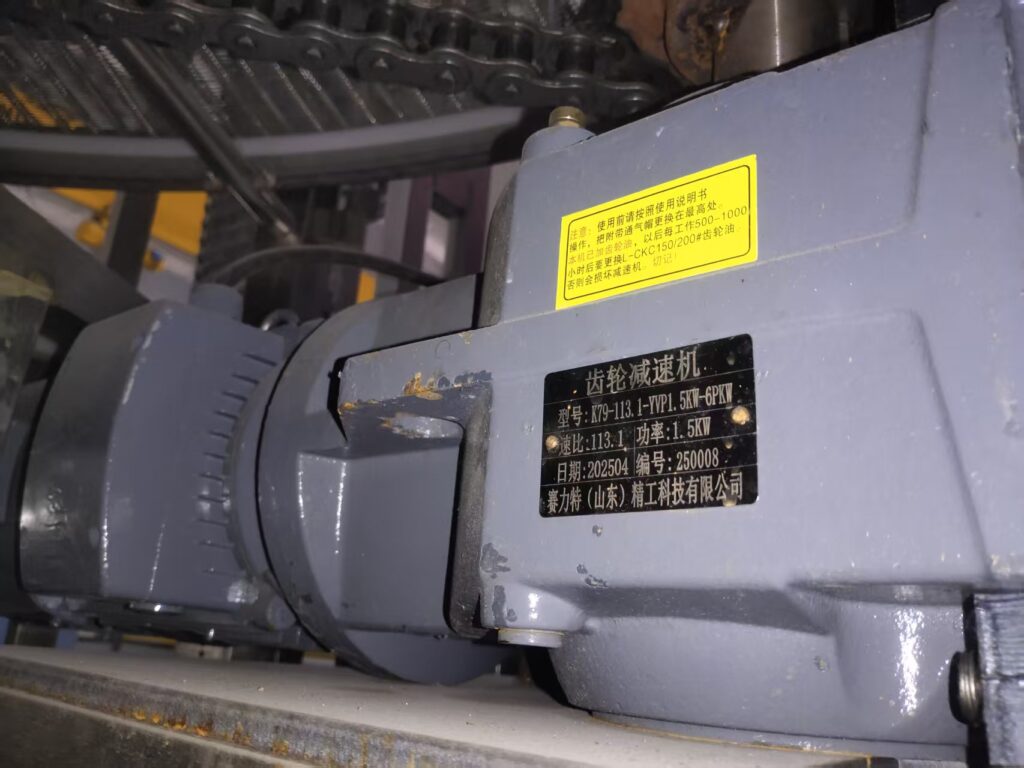

Electrical System Innovation
Our spiral cooling conveyor system are pre-engineered to support worldwide voltage standards, including 110V, 220-230V, 380-410V, and more. Whether your operations are in North America (120V/60Hz), Europe (230V/50Hz), Asia (380V/50Hz), or South America (220V/60Hz for Brazil, 380V/50Hz for Argentina), we provide custom voltage configurations to match your local grid requirements.
304 Stainless Steel Frame
Since our spiral cooling systems are mainly used for conveying food products, we recommend using a 304 stainless steel frame, as it provides excellent corrosion resistance and high-temperature resistance.

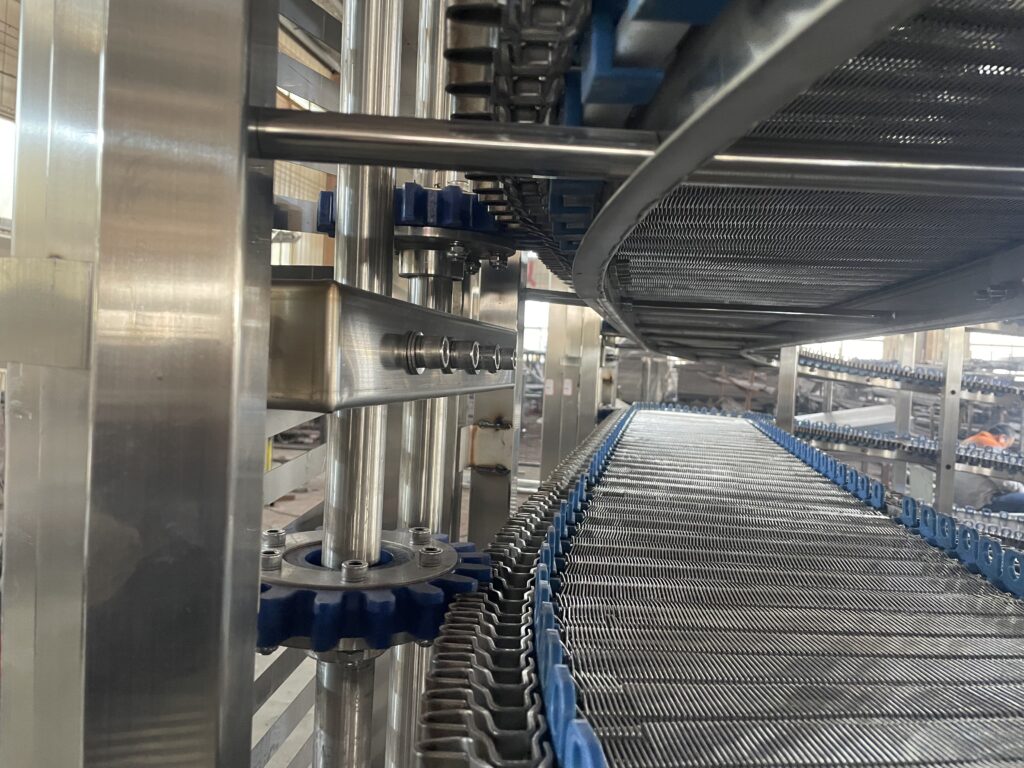

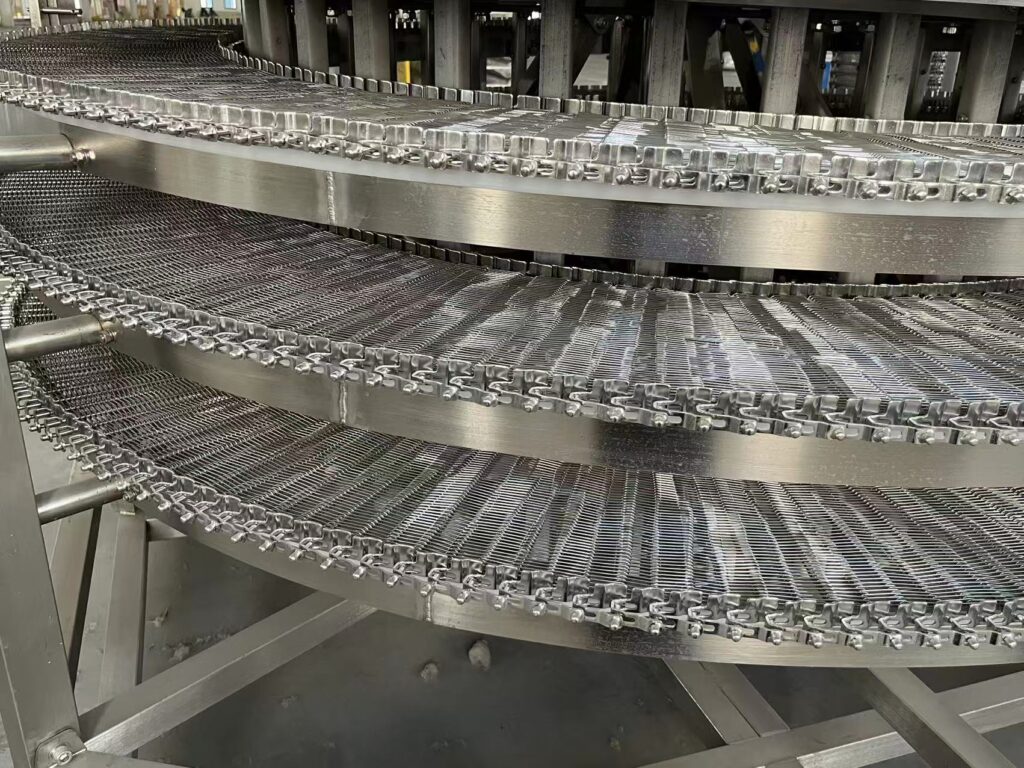

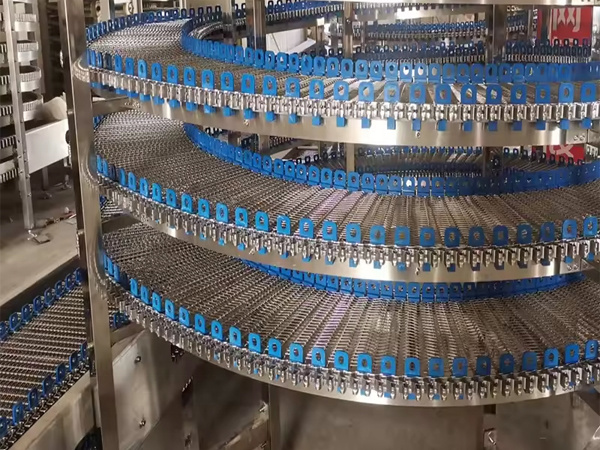

304 Stainless Steel Spiral Conveyor Belt
Given that the conveyor is intended for transporting food products, the spiral conveyor belt must be constructed from 304 stainless steel. As our factory manufactures metal conveyor belts in-house, we are able to offer highly competitive pricing.
Solid Construction
High-quality materials and precise manufacturing help ensure excellent strength, wear resistance, and long service life. This solid construction also enhances overall reliability, making the system suitable for demanding industrial and food processing environments.
Key Parameters for Spiral Cooling Tower
Since spiral cooling towers are custom-built, every parameter varies; therefore, using bread cooling as an example, we present a case study of our parameters here.
| Item | Specification |
|---|---|
| Product | Various types of bread |
| Bread Size Range | Min. 40 × 40 × 30 mm (H), Max. 200 × 200 × 50 mm (H) |
| Capacity | Approx. 500 kg/hour |
| Loading Capacity per Meter | 1.6 kg/m |
| Cooling Time | 60 minutes |
| Tower Structure | Round double tower, bottom infeed and bottom outfeed |
| Effective Belt Width | 800 mm |
| Recommended Tier Height | Recommended 80–100 mm, based on max. bread height of 50 mm |
| Infeed Height | 800 mm |
| Max. Tower Diameter | Not more than 5500 mm |
| Max. Tower Height | Not more than 3500 mm |
| Total Belt Length | Approx. 315 meters |
| Running Speed | 3–5 m/min |
| Power Supply | 380V / 3Ph / 50Hz |
| Material | Stainless steel 304 frame + stainless steel mesh belt |
Spiral Cooling Tower Model

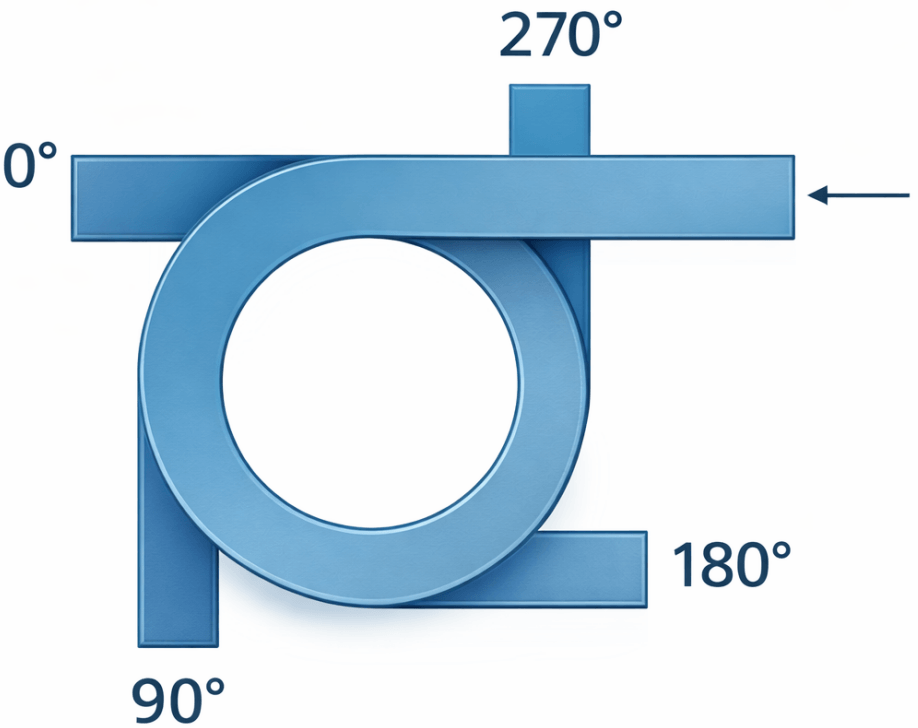

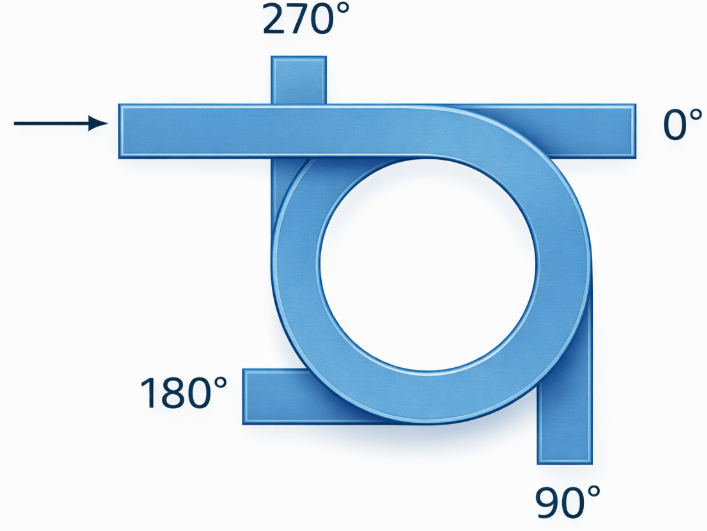

By arranging the infeed and outfeed at different directions such as 0°, 90°, 180°, or 270°, the system can be flexibly adapted to various plant layouts and production line connections. This structure helps optimize workflow, improve space utilization, and ensure smooth product handling. With customizable dimensions, belt types, and operating parameters, the single-tower spiral conveyor is widely used in food processing, bakery, freezing, and industrial conveying applications.

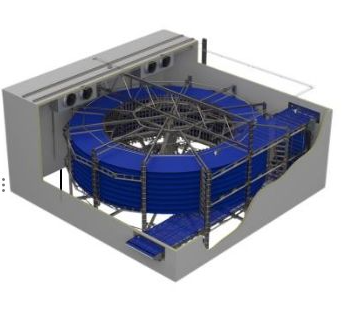

Zero-degree turn

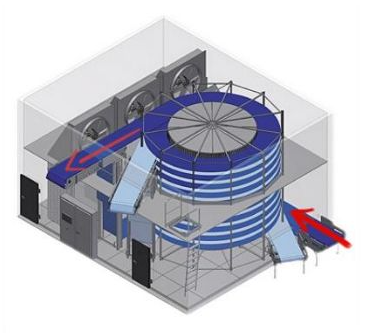

90-degree turn

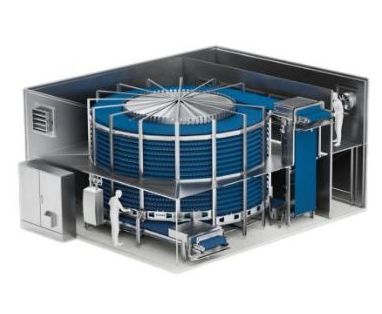

180-degree turn

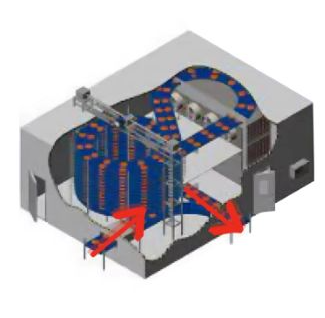

270-degree turn
Spiral Cooling Tower Video
These videos mainly showcase spiral tower conveyors after on-site installation, giving you a better view of the actual equipment operation, structural layout, and running performance in real working environments.

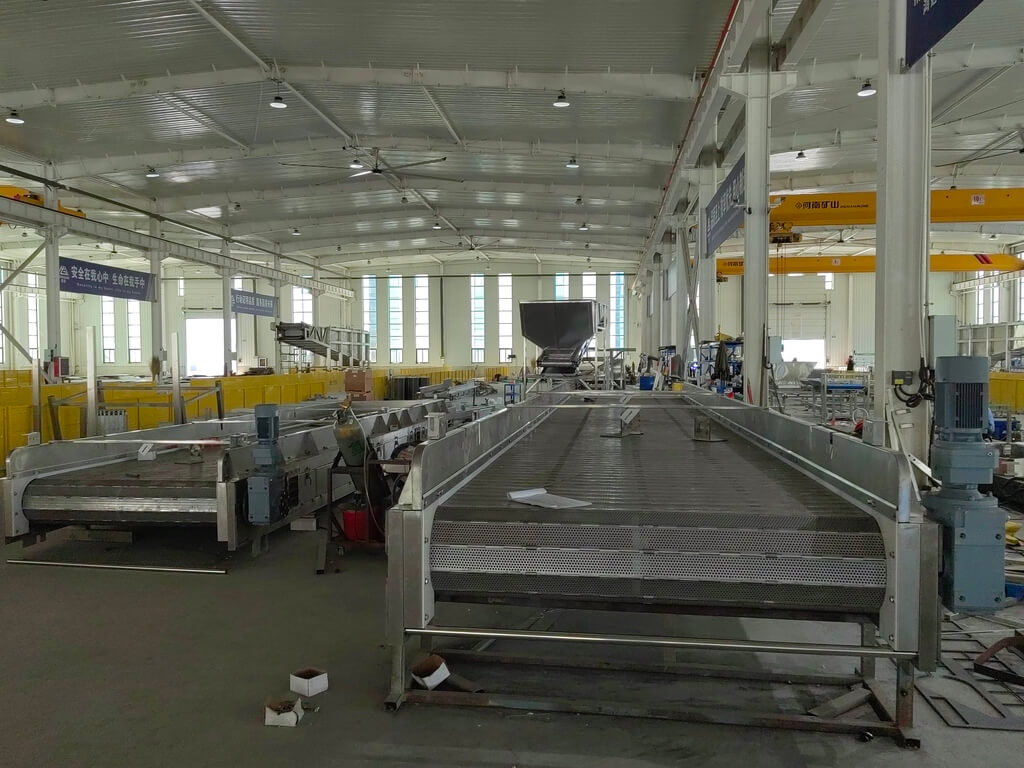

Factory Direct · Professional Manufacturer

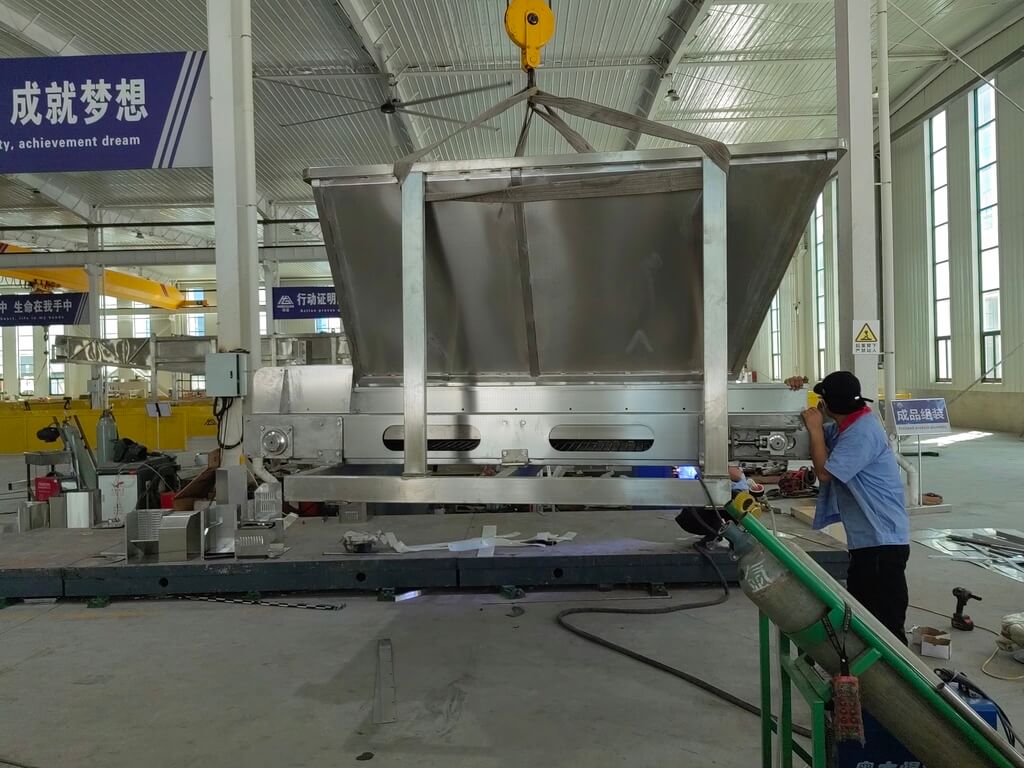

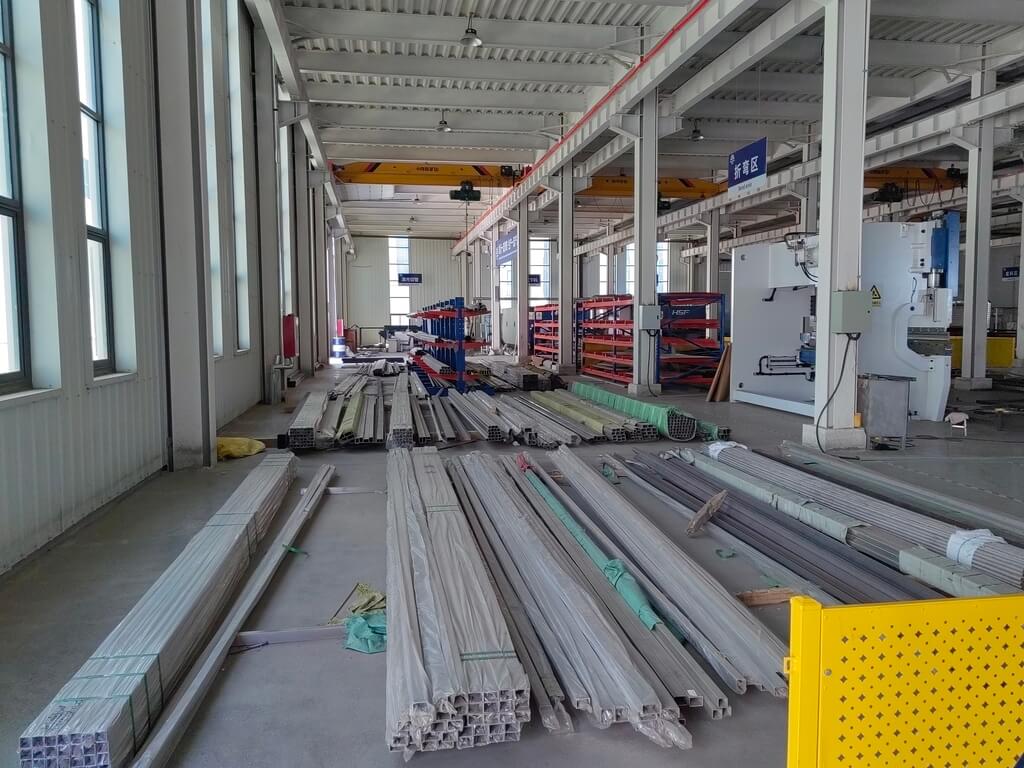

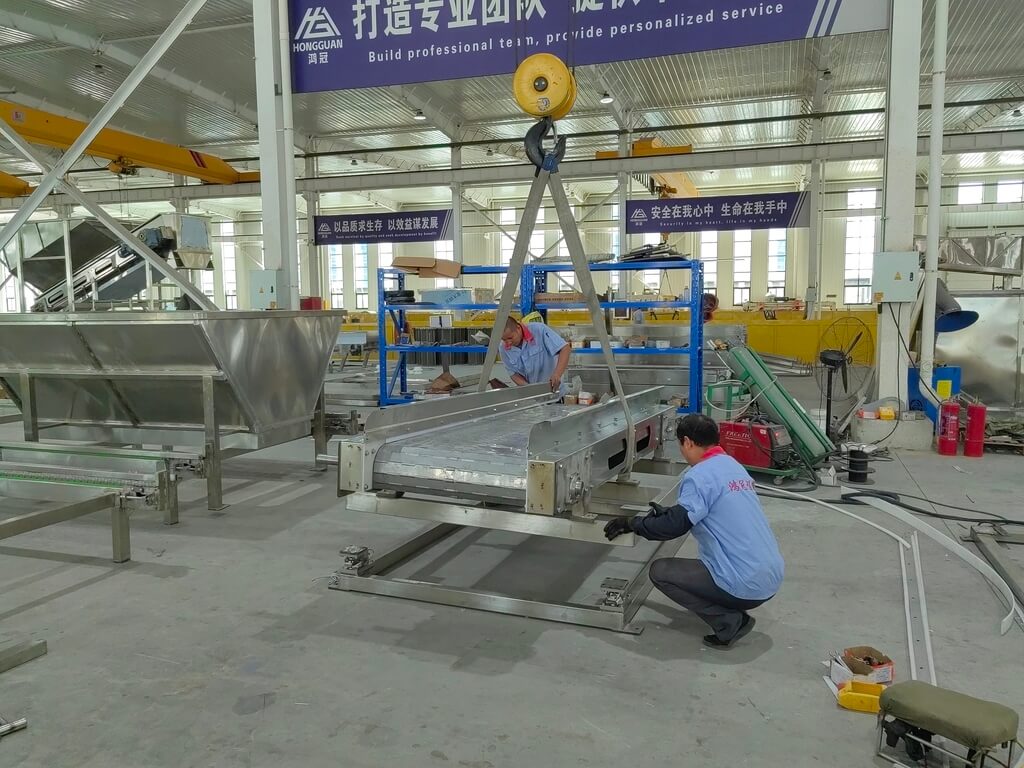

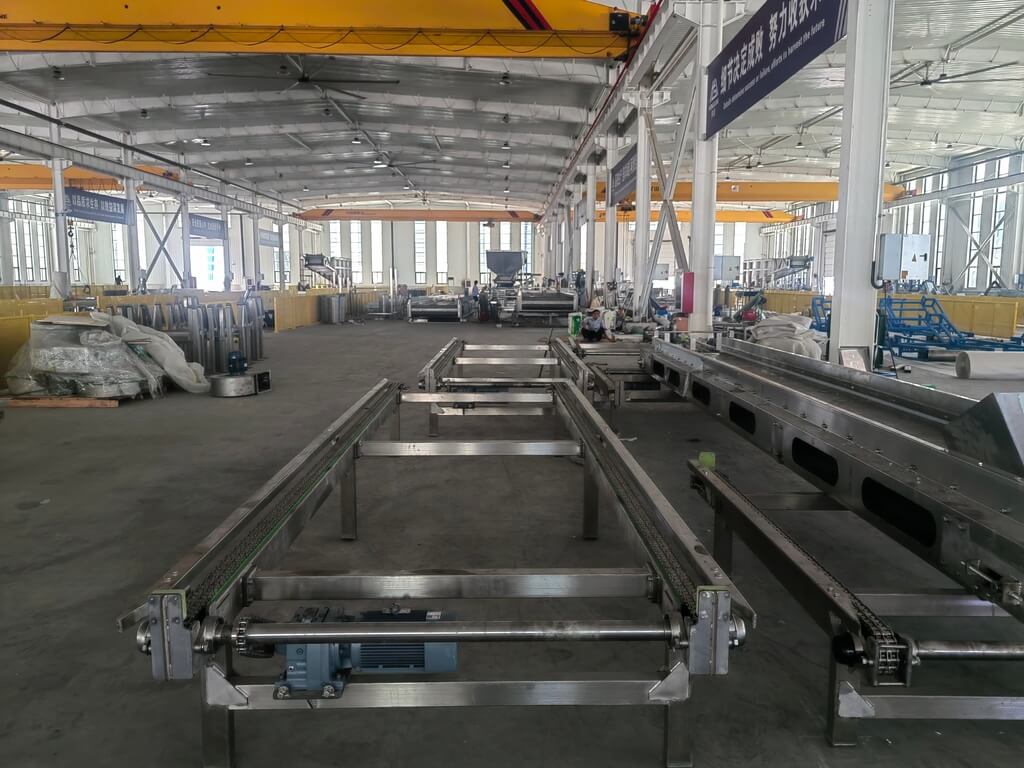

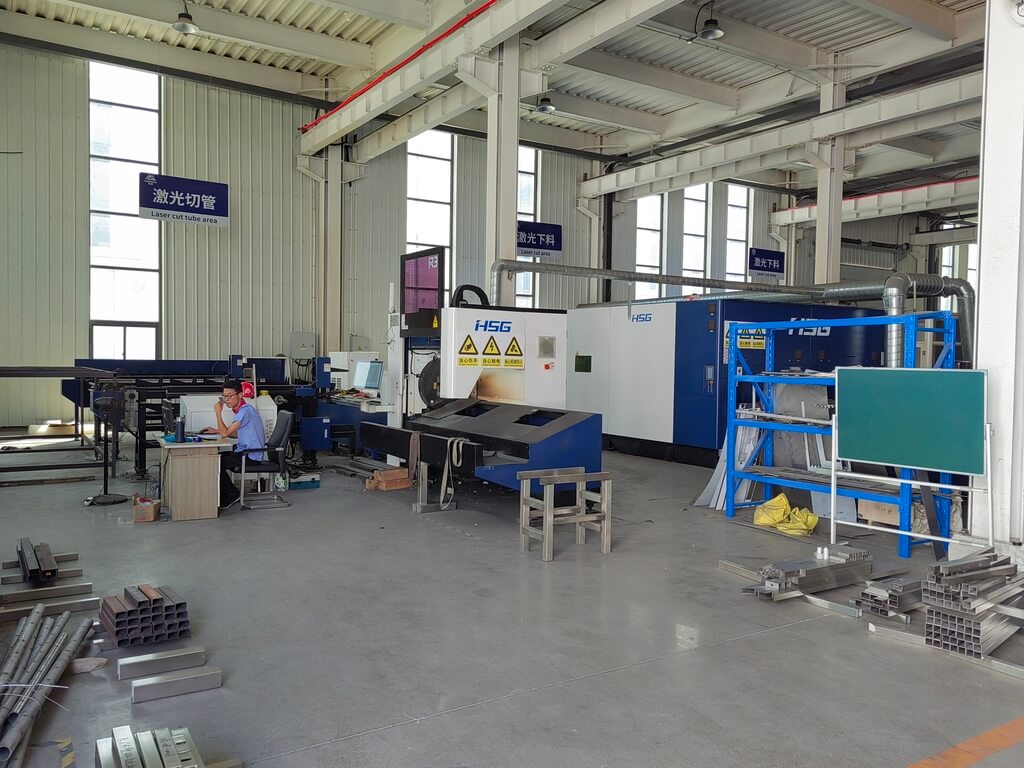

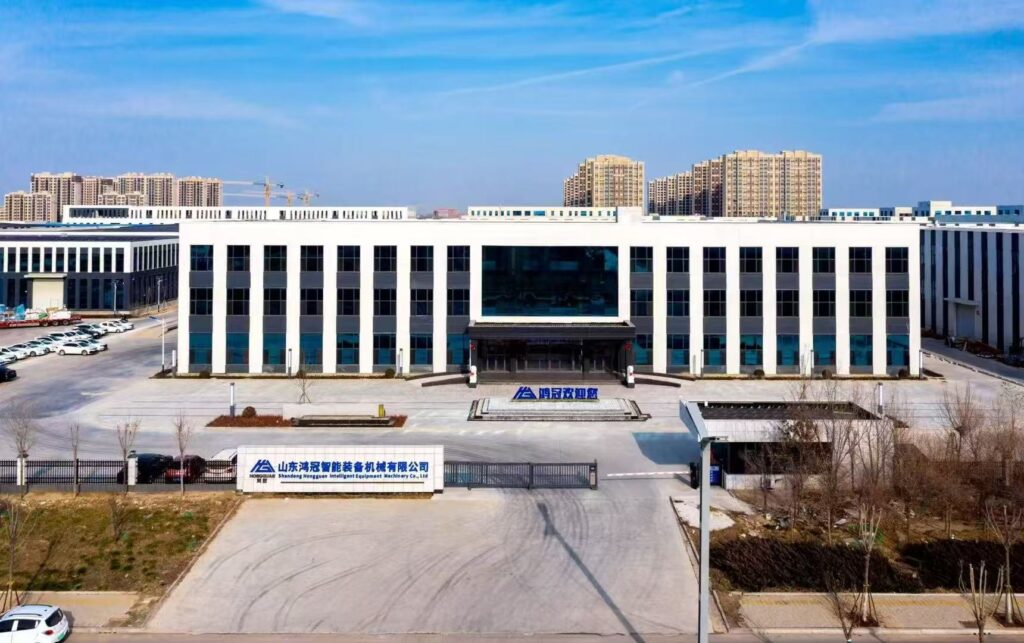

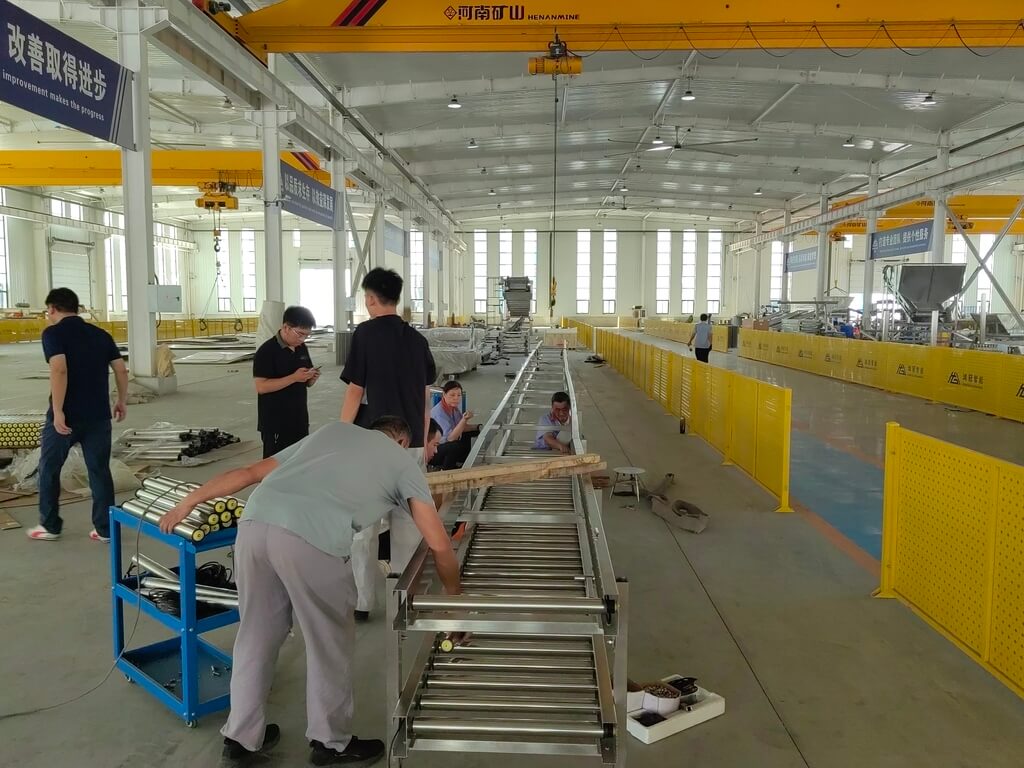

Our factory specializes in the production of spiral cooling towers, with a manufacturing facility covering more than 5,000 square meters. We are equipped with professional production capabilities and rich customization experience to support different cooling and conveying requirements.
Custom Conveyor Solutions – Frequently Asked Questions
Our Certificates & Qualifications
Our certificates demonstrate strong manufacturing capability and credibility, giving customers full confidence in our products and services.
Contact Us for Customized Metal Conveyor Belts
Get in touch with us for tailored solutions on metal conveyor belts. Whether you need specific widths, mesh types, materials, or special designs, our team will provide professional support and quick responses to meet your exact requirements.
